Bonded Fin Heatsinks: High-Performance Thermal Solutions for Industrial Applications

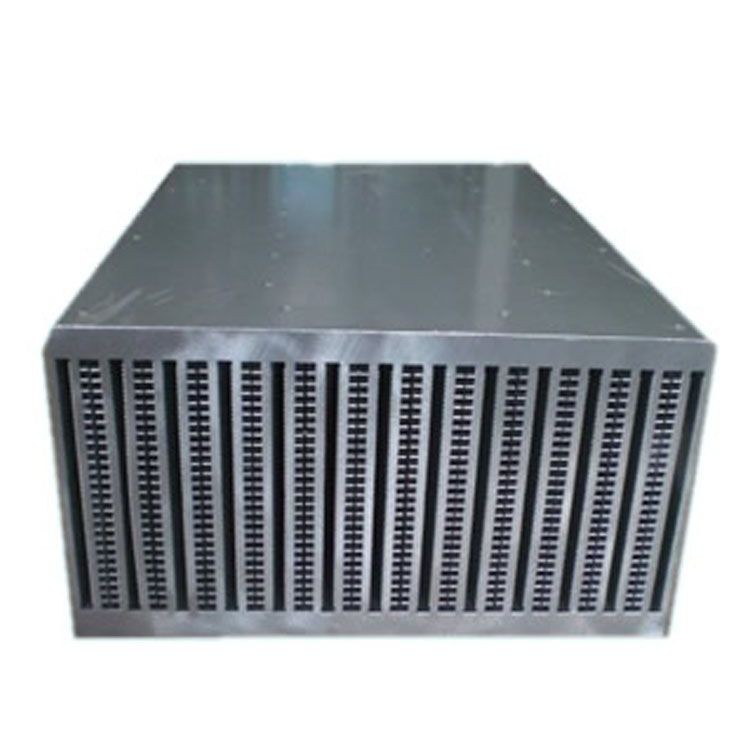

1.Introduction to Bonded Fin Technology
Bonded Fin (also known as Brazed Fin or Adhesive-Bonded Fin) is a specialized manufacturing process that attaches individual metal fins to a baseplate using brazing, welding, or adhesives. This method allows for material flexibility (e.g., aluminum baseplates with copper fins) and high-density fin arrangements (as thin as 0.3mm), making it ideal for high-power industrial applications such as IGBT cooling in SVG systems, inverters, and 5G base stations.

Key advantages include:
- Maximized Surface Area: Dense fin arrays significantly improve heat dissipation efficiency.
- Material Versatility: Combines high-conductivity materials (e.g., copper fins on aluminum bases) to balance cost and performance.
- Structural Robustness: Resists vibration and mechanical stress better than stamped or skived fins.

2. Technical Breakdown of Bonded Fin Manufacturing
2.1 Process Steps
1. Baseplate Preparation: Precision machining of grooves or slots to ensure fin alignment.
2. Fin Attachment:
- Brazing: Uses low-melting-point alloys (e.g., Al-Si) to create metallurgical bonds, achieving ultra-low thermal resistance.
- Adhesive Bonding: Epoxy-based solutions for low-temperature applications, though with slightly reduced thermal conductivity.
3. Integration with Heat Pipes: Embedded heat pipes enhance phase-change heat transfer (e.g., 8 heat pipes in Aavid's SVG solution reduced IGBT temperatures by 35°C).

2.2 Innovations in Precision
Recent patents, such as CN 221995899 U, highlight advancements in positioning modules using stepper motors and screw rods, ensuring fin alignment accuracy within 0.1mm.

3. Performance Comparison with Other Fin Technologies

4. Industrial Applications and Case Studies
4.1 Renewable Energy Systems
- SVG/STATCOM: Bonded Fin heatsinks are critical for IGBT cooling in dynamic reactive power compensation systems, operating reliably at altitudes up to 3,000m and ambient temperatures of 40°C.
- Photovoltaic Inverters: Customizable fin density (e.g., 92 fins at 1.2mm thickness) ensures stable operation under high solar irradiance.

4.2 Telecommunications and Data Centers
- 5G Base Stations: High-density fin arrays (1–5mm spacing) enable compact, low-noise cooling for RF power amplifiers.
- Server Racks: Integrated heat pipes and bonded fins reduce hotspot temperatures in GPU/CPU clusters.

5. Challenges and Future Innovations
5.1 Limitations
- High Cost: Brazing requires specialized equipment, making small-batch production uneconomical.
- Process Complexity: Demands tight tolerances for baseplate/fin alignment to avoid voids or weak bonds.

5.2 Emerging Trends
- Hybrid Cooling: Combining bonded fins with liquid cooling (e.g., FURTHER WANG's patented process) to enhance heat flux density.
- Nano-Coatings: Carbon-based sprays improve radiative heat transfer while preventing corrosion.
- AI-Driven Design: Simulation tools (e.g., ICEPAK) optimize fin geometry for specific airflow and thermal load conditions.

Bonded Fin technology remains a cornerstone of industrial thermal management, offering unmatched flexibility and reliability for high-power applications. By emphasizing multi-material compatibility, precision manufacturing (e.g., patented positioning modules), and real-world case studies, manufacturers can position themselves as trusted partners in sectors ranging from renewable energy to advanced computing. Future advancements in hybrid cooling and AI-driven design will further solidify its role in next-generation thermal solutions.

ZP is one of professional customized bonded fin heat sink manufacturers, we can provide you customized aluminum stacked fin heat sink and copper stacked fin heat sink according to your requirement.
