Precision Inserted Fin Heat Sinks | Custom, Versatile & Cost-Effective Thermal Managemen

Inserted Fin Heat Sinks offer an optimal blend of performance, versatility, and value for a wide spectrum of electronic cooling needs. By combining a machined metal base with individually inserted aluminum fins, this construction method delivers highly efficient thermal dissipation with exceptional design flexibility for prototyping and medium-to-high volume production.

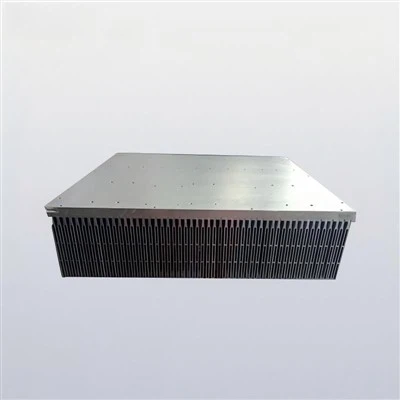

Our Inserted Fin Heat Sink, also known as a Zipper Fin or Lanced Fin heat sink, is engineered for applications demanding reliable thermal performance and adaptable design. The core structure consists of a robust copper or aluminum base plate, into which a continuous strip of folded aluminum fin is mechanically inserted under high pressure. This creates a secure, large-surface-area assembly ideal for managing heat from power semiconductors, LEDs, and other electronic components.













1.  Unparalleled Design Flexibility: The base and fin processes are independent, allowing for virtually any footprint, unique cut-outs, multi-level fin heights, or custom shapes to fit complex enclosures.

2. Superior Thermal Performance: Copper bases offer exceptional thermal spreading, while the high-density, thin aluminum fins maximize surface area for effective convection, achieving an excellent balance between conduction and convection.

3. Cost-Effective for Custom Designs: Eliminates the high cost of extrusion dies. Ideal for custom geometries and projects where design iterations are frequent, reducing upfront tooling investment.

4. Rapid Prototyping & Lead Times: Design changes can be implemented quickly by adjusting base machining and fin stock, significantly accelerating development cycles compared to tooling-dependent methods.

5. Robust Mechanical Bond: The fin is physically locked into the base via a high-pressure insertion process, ensuring a stable connection with low contact resistance, suitable for high-vibration environments.

6. Hybrid Material Construction: The ability to combine a high-conductivity copper base with lightweight, high-surface-area aluminum fins optimizes performance and cost.





Inserted Fin Heat Sinks are the preferred solution across industries where standard extrusions fall short:

1. Power Electronics: IGBT modules, SCRs, Power MOSFETs, diode bridges, and AC/DC power supplies.

2. Motor Drives & Inverters: Cooling for industrial VFDs, servo drives, and traction inverters in EVs/HEVs.

3. RF & Telecommunications: Power amplifiers, base station components, and broadcast equipment.

4. Industrial & Automotive Electronics: Controllers, converters, and onboard chargers.

5. LED Lighting: High-power street lights, stadium lights, and industrial high-bay fixtures.











Our production process ensures precision and reliability at every stage:

1. Base Fabrication: A copper or aluminum plate is precision CNC machined to create the required footprint, mounting features, and the groove or channel for fin insertion.

2. Fin Stock Preparation: Aluminum coil is precision stamped and folded (lanced) to create the continuous fin strip with the designed pitch and geometry.

3. Fin Insertion: The fin strip is fed into a specialized machine and pressed into the base plate's groove under controlled force, creating a permanent mechanical interference fit.

4. Secondary Operations: The assembly undergoes additional CNC machining for final dimensions, flatness correction, hole tapping, or special features.

5. Surface Finishing & Cleaning: Components receive specified finishes (e.g., anodizing, plating) and are thoroughly cleaned to remove contaminants.

6. Rigorous Inspection: Each unit is validated for dimensional accuracy, fin alignment, bond integrity, and surface quality.





We provide more than a component; we deliver a tailored thermal solution.

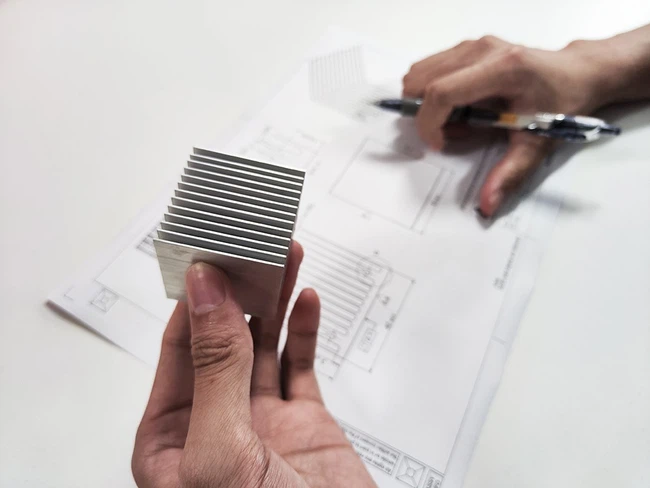

1. Expert Co-Design Support: Our engineers collaborate with you to optimize the base material, fin density, and overall layout for your specific thermal, mechanical, and cost targets.

2. Seamless Prototype-to-Production: We support you from initial concept validation through to stable, high-volume manufacturing with consistent quality.

3. Full Process Control: In-house control over machining, insertion, and finishing guarantees quality and protects your IP.

4. Global Compliance & Support: Products are manufactured to meet international standards, backed by responsive technical support for our global clientele.





Get Your Custom Thermal Solution Quote

Ready to solve your cooling challenge with a flexible and high-performance Inserted Fin Heat Sink? Send us your requirements, CAD files, or thermal specifications for a rapid engineering assessment and competitive quotation.



Website: www.zpheatsink.com

Email: general@zp-aluminum.com



From Drawing To Reality, ZP helps you to achieve.
