Dual Side Guard High-Density Extruded Aluminum Heat Sink Series
Two-spec aluminum extruded heat sink with integrated side baffles, high-density fins for high power and wide-gap fins for fanless devices. Custom cutting, CNC machining and black anodizing available. Request your quote now.
- Product Introduction
Two Sizes of Open Cooling Profile for Low & Medium-High Power Electronics

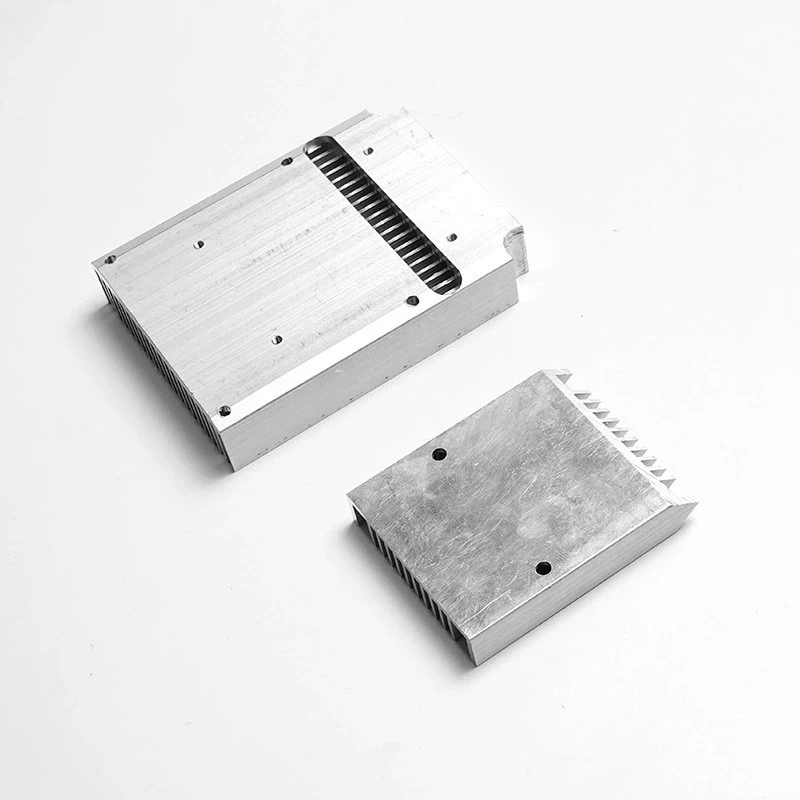

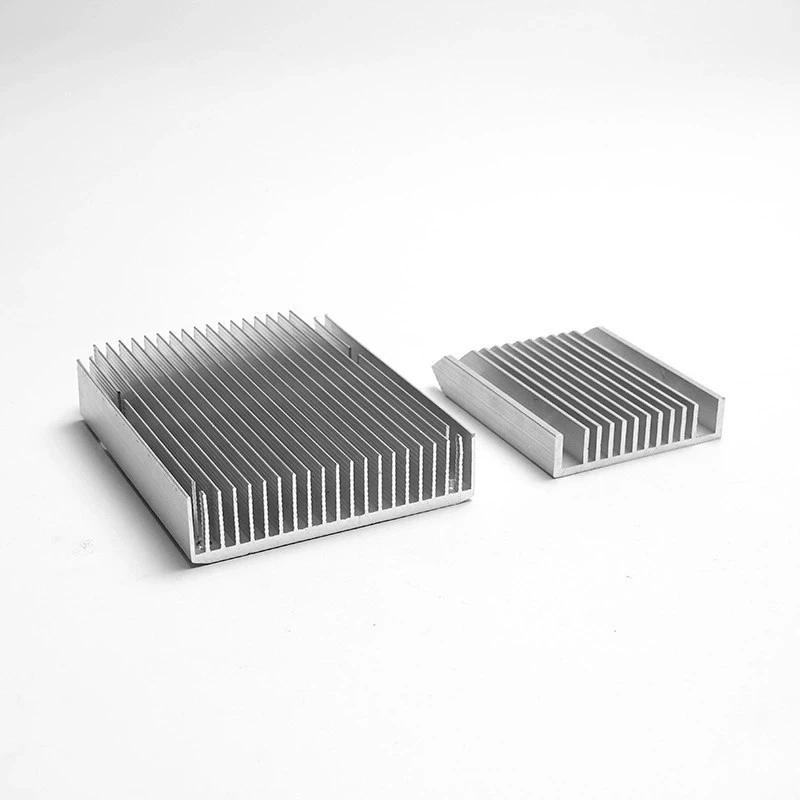

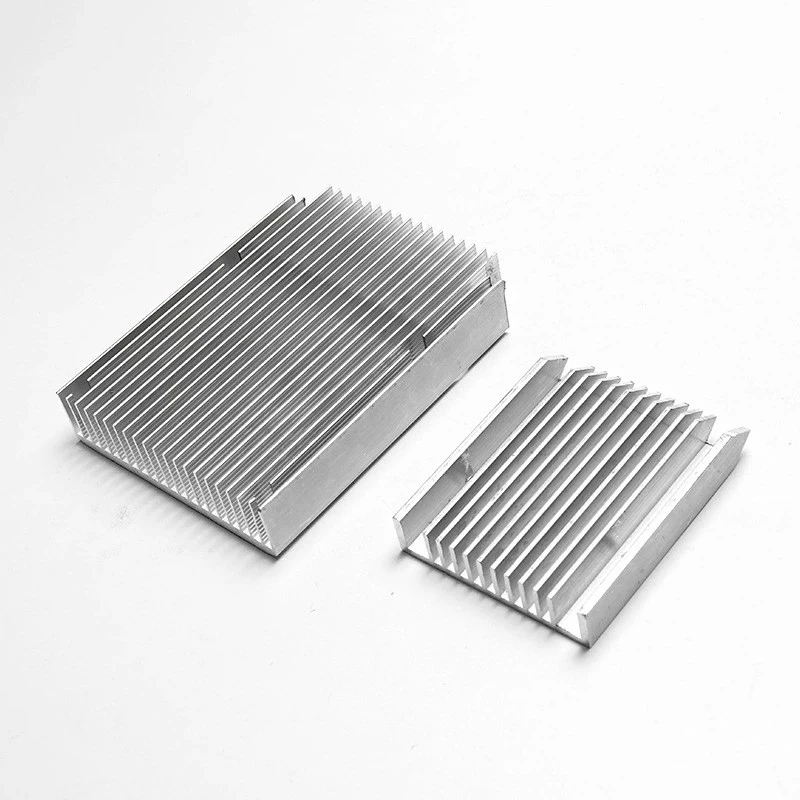

This dual side guard aluminum heat sink series includes two standard sizes: a large high-fin-density model for high-power equipment and a slim wide-gap fin model for low-power silent devices. Both are manufactured by one-piece 6063-T5 aluminum extrusion with integrated solid side baffles, which optimize airflow protection and structural rigidity.
The enclosed side wall design concentrates cooling air flow when paired with fans and prevents fin deformation during assembly. We supply raw long extrusion bars for custom cutting length, as well as full CNC machining and multiple anodizing surface treatments to meet diverse electronic cooling requirements.
Product Specification
| Parameter | Technical Details |
| Material | 6063-T5 Aluminum Alloy |
| Thermal Conductivity | 205–210 W/m·K |
| Profile Structure | Solid flat base + parallel fins + integrated dual side guard baffles |
| Two Standard Versions |
1. Large high-density thin fins (for high power) 2. Small wide-gap thick fins (for low-power fanless cooling) |
| Custom Length | Any length from 50mm–3000mm via precision cutting |
| Surface Treatment | Mill finish, clear silver / black hard anodizing, sandblasting |
| Custom Machining | CNC drilling, tapping, deburring, wiring slot milling |
| Dimension Tolerance | ±0.1mm for cut lengths; ±0.2mm for profile outlines |
Product Features
1. Integrated Dual Side Guards Optimize Airflow & Protect Fins

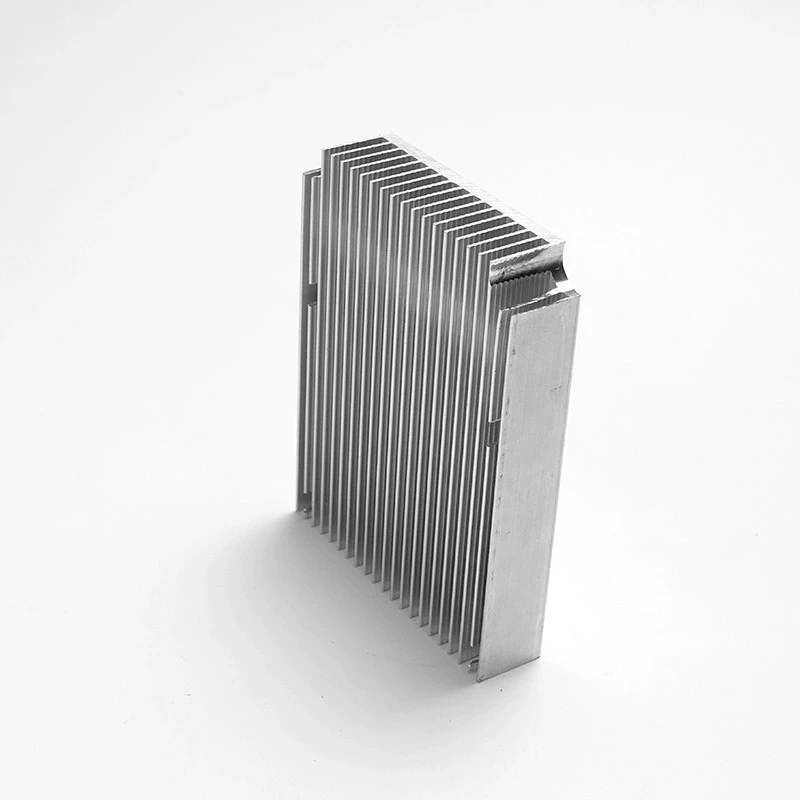

The solid one-piece side baffles form a semi-enclosed airflow channel to avoid air leakage under fan cooling, greatly improving forced convection efficiency. Meanwhile, the side walls shield thin fins from collision and bending during production, assembly and transportation.
2. Two Standard Sizes Cover Full Power Range
High-density fin version: Maximizes heat exchange area for kilowatt-level high-power devices such as inverters and power amplifiers.
Wide-gap low-fin version: Features minimal air resistance for silent fanless natural convection, perfect for compact low-power modules.
3. Seamless One-Piece Extruded Construction Reduces
Thermal Resistance Base, fins and side guards are extruded as a single continuous aluminum piece without assembly gaps, eliminating internal thermal barriers and enabling uniform heat transfer to all fins.
4. Thick Flat Solid Base for Efficient Heat Spreading
The smooth heavy base offers full contact surface for PCBs, MOSFET and IGBT arrays, evenly distributing concentrated heat and avoiding local overheating of sensitive electronic components.
5. Fully Customizable Secondary Processing
Raw extruded bars can be cut to your exact required dimensions. Our CNC workshop adds mounting holes, threaded inserts and custom cutouts matching your chassis and PCB layout, with multiple anodizing options for anti-corrosion and aesthetic demands.
Application
Large High-Density Model
High-power switching power supplies, frequency converters, solar inverters, professional stage amplifiers, servo motor drives
Small Wide-Gap Model
LED constant current drivers, mini digital audio amplifiers, compact PLC control modules, security camera fill light power supplies, portable charging equipment
Production
1. Integrated Aluminum Extrusion Molding Premium 6063 aluminum billets are heated and extruded through dedicated precision dies to form the complete profile with dual side guards, consistent fin thickness and flat base surface.
2. Precision Cut-to-Length & Full Deburring Long extruded blanks are cut to customer specified lengths, followed by complete edge deburring to eliminate sharp burrs that scratch PCBs and operators.
3. Optional CNC Precision Machining Multi-axis CNC machines process mounting holes, threads and wiring slots with tight dimensional tolerances to fit your equipment assembly design.
4. Protective Surface Treatment Mill finish, silver or black hard anodizing can be applied to create a dense anti-rust protective film for indoor industrial and consumer electronic environments.
5. Strict QC Inspection & Export Packaging All finished heat sinks pass dimensional and surface defect inspection before shipment. Shock-proof foam and export cartons prevent bending and surface abrasion during global long-distance logistics.
Why Choose ZP?
1. Over 20 years of professional aluminum extrusion production experience for general electronic cooling profiles
2. Two standard stock molds cover low to high power demands, fast sample delivery without new mold costs
3. In-house CNC machining and anodizing production lines to control lead time and product quality
4. Professional thermal engineering support to recommend the right fin density according to your power load
5. Flexible order volumes: prototype samples, small trial batches and mass OEM production
6. Fully compliant with ISO 9001, RoHS and REACH standards for worldwide market sales
7. Dedicated multilingual foreign trade team with stable global shipping solutions
Contact our thermal engineering team today to get customized size, machining and surface treatment solutions for your electronic cooling project.
